Dolphin Basic remote control (99954227-ASSY)
Dolphin Basic remote control (99954227-ASSY)

Basic remote control - 99954227-ASSY

Maytronics
99954227-ASSY
€89.00
Tax included

New replacement BASIC digital remote control for your Dolphin cleaner.
Remote control specific for pool robots:

Dolphin Explorer Plus
Dolphin Sprite RC
Dolphin Swash TC
Dolphin Cosmos 30
Dolphin W20

To be combined with the BASIC digital transformer without display: 9995675-ASSY.
12 MONTHS WARRANTY

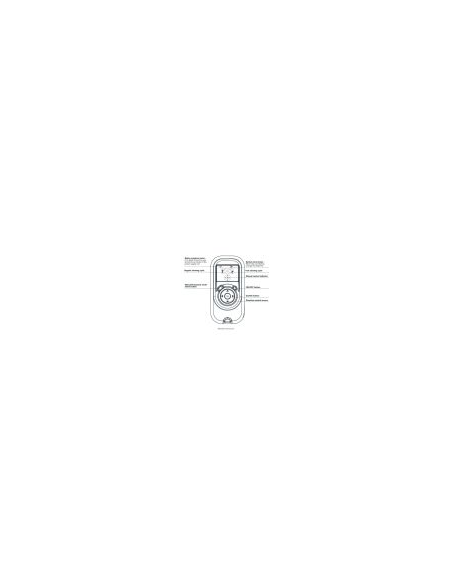

The Remote Control Unit (RCU) offers two operation modes: Automatic mode and Manual direction mode. In Automatic cleaning mode, In automatic mode, the cleaning parameters can be changed. In Manual direction mode, the robots motion can be controlled manually.
Manual Direction Control Mode

Press the On/Off button once. The remote control will start in manual direction control mode.
Use the direction control arrows to control the movement of the robot around the pool.
To exit the manual direction control mode, press the Manual/Automatic select button once only.


Setting the Automatic Mode

Press the Manual/Automatic Selection button ONCE only.
The Digital screen will light up and the two (regular/fast) icons will show up.
To choose regular or fast cleaning cycle use the right or left arrows.
When you reach the required function press the Set/OK button.

Note:

When choosing the fast cleaning cycle the pool cleaner will not climb walls.
After 2 minute if no button is pressed, the Remote Control Unit will shut-down and the Pool cleaner will continue to work in the previous settings.
When the "Ultra-Clean" and "Walls Only" options finish their cycles, the Pool Cleaner will return to default settings.

  • Card, Paypal, Bank Transfer
  • Delivery in 24/72h
  • 100% satisfied customers.
  • Worldwide Delivery Available


New replacement BASIC digital remote control for your Dolphin cleaner.
Remote control specific for pool robots:

Dolphin Explorer Plus
Dolphin Sprite RC
Dolphin Swash TC
Dolphin Cosmos 30
Dolphin W20

To be combined with the BASIC digital transformer without display: 9995675-ASSY.
12 MONTHS WARRANTY

The Remote Control Unit (RCU) offers two operation modes: Automatic mode and Manual direction mode. In Automatic cleaning mode, In automatic mode, the cleaning parameters can be changed. In Manual direction mode, the robots motion can be controlled manually.
Manual Direction Control Mode

Press the On/Off button once. The remote control will start in manual direction control mode.
Use the direction control arrows to control the movement of the robot around the pool.
To exit the manual direction control mode, press the Manual/Automatic select button once only.


Setting the Automatic Mode

Press the Manual/Automatic Selection button ONCE only.
The Digital screen will light up and the two (regular/fast) icons will show up.
To choose regular or fast cleaning cycle use the right or left arrows.
When you reach the required function press the Set/OK button.

Note:

When choosing the fast cleaning cycle the pool cleaner will not climb walls.
After 2 minute if no button is pressed, the Remote Control Unit will shut-down and the Pool cleaner will continue to work in the previous settings.
When the "Ultra-Clean" and "Walls Only" options finish their cycles, the Pool Cleaner will return to default settings.

Robot family
M400 · M500 · Supreme M4 · M5
Sprite RC
Swash TC · Cosmos 30
W20
Robot series
Commercial & professional
M Series, Supreme & Zenit
Master, Thunder & older ranges
Fitment note
Several versions exist: please compare the part number on your old part before ordering.
